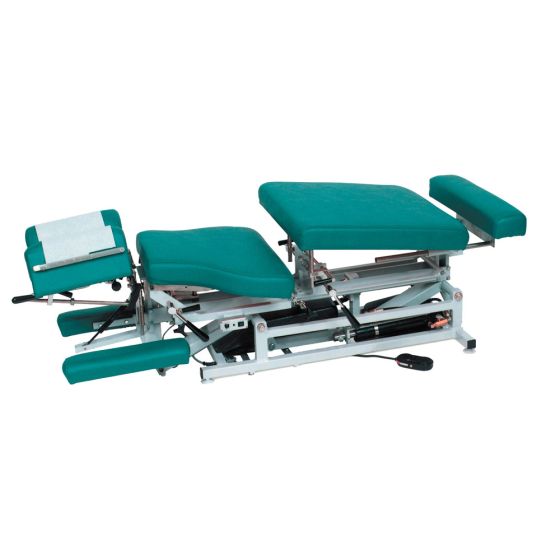

Lloyd 402 Elevation Table with Full Drops

Lloyd 402 Elevation Table with Full Drops

The 402 Elevation is hydraulically lifted to any height from 19" to 39" in 10 seconds with superior stability, and will lift patients weighing up to 600 lbs. Optional Superior automatic Cocking drops and Electronic Height Adjustment are available.

Lloyds drop design allows the amount of force applied to be equal, weather that force is applied on the right, left or center of the cushion, making them superior to other drops on the market. The automatic cocking drops are built into the table with controls on each side and can be set manually in the event of electric failure. No air compressor is required. A specially designed spring release on chest section is optional. Optional manual and automatic drops are available.

Specifications:

• Height Range: 19” – 39”
• Fully Extended: 75” L
• Fully Retracted: 62”
• Foam: 3” Firm
• Table Width: 250lbs (approx.)
• Actual Weight: 180lbs (approx.)

Standard Features

• Hydraulically controlled Elevation
• Adjustable Width Tilting Headpiece
• One piece adjustable chest
• Adjustable Pelvic
• Adjustable Ankle Rest (Horizontal)
• Total Drop System™ (Forward Motion Drop Head w/BIPA, Chest Drop (Manual) Lumbar/Pelvic Drop (Manual)

Optional Features:

• Lloyd's superior designed auto cocking drops
• Elevating, Straight drop headpiece
• Spring Breakaway Chest
• Manual & Automatic drop Ankle
• Vertical Ankle Rest
• Electronic Height Adjustment(EHA)
• Total Dimension Flexion Headpiece
• Snap-on Covers
