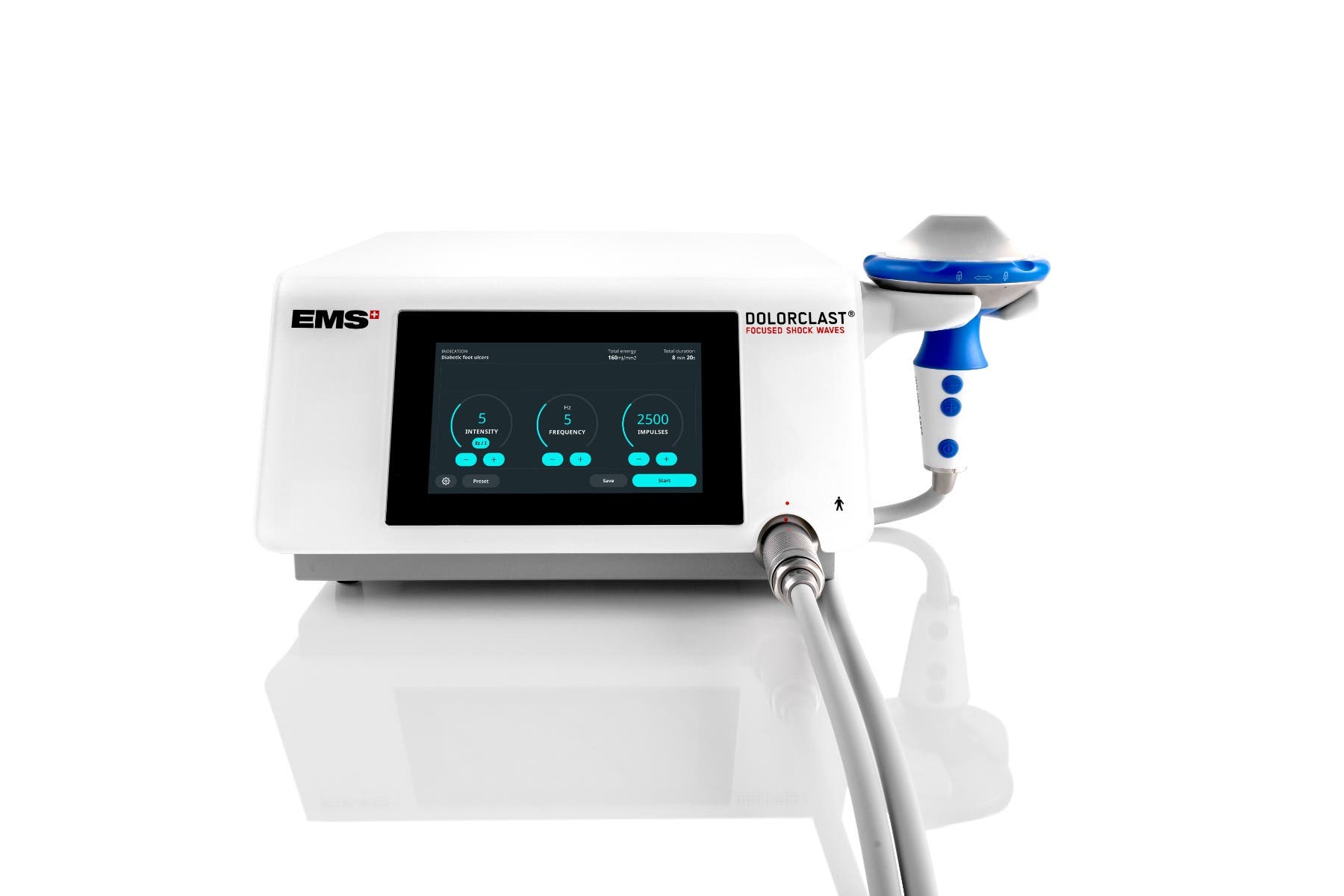

EMS Dolorclast® Focused Shockwave

Experience focused shock wave therapy like never before. The DolorClast® Focused Shock Waves device by EMS delivers first-line therapy for deep structural musculoskeletal and bone pathologies—providing in-depth, high-energy focus for pain relief and rehabilitation.

Features:

• High-energy output for better treatment outcomes.
• Targets the root cause of pain and neurogenic inflammation.
• Promotes natural healing with minimal discomfort.
• Non-invasive alternative to surgery and injection.
• Best suited for deep musculoskeletal and bone pathologies, calcifications, deep trigger points, or erectile dysfunction.
• Fast effects from the first session and lasting benefits.
• Alternative to radial shock waves for patients with low pain thresholds.

Designed to Enhance Patient Care:

• Intuitive touch-screen interface for seamless navigation.
• Preset protocols for easy guidance and customizable parameters.
• Real-time monitoring of key treatment values.
• Analgesic and Ramp-up modes to increase comfort and compliance.
• Piezoelectric technology ensures precise energy delivery and reduced mechanical stress.
• Three gel pads for adjustable focus depth based on pathology.
• Plug-and-play transportable design for treatment anywhere, anytime.
• Maintenance-free with long handpiece lifespan (over 5 million impulses).

Clinical Indications:

• Pain syndromes (myofascial pain, greater trochanteric pain, trigger points, lumbar and cervical pain, pelvic pain).
• Tendinopathies and fasciopathies.
• Chronic soft tissue wounds.
• Knee osteoarthritis.
• Bone lesions (nonunion, delayed union, stress fractures, tibial stress syndromes, shoulder adhesive capsulitis).
• Spasticity.
• Erectile dysfunction.

Technical Features:

Manufacturer:
EMS ELECTRO MEDICAL SYSTEMS SA, CH-1260 Nyon, Switzerland

Model:
DolorClast® Focused Shock Waves

Regulation (EU) 2017/745 Classification:
Console, Handpiece: Class IIa
Contact gel, Gel pads, Cart: Class I

Classification EN 60601-1:
Console, Handpiece, Gel pads: Class I
Applied part type B
IP Rating: Console IP21 / Handpiece & Gel pads IP20
Mode: Continuous operation

Power Supply:
100–127 / 220–240 VAC, 50–60 Hz, 150 VA

Ranges:
Intensity: 0.1–20
Energy: 0.008–0.403 mJ/mm²
Number of impulses: 0–4000
Frequency: 1–8 Hz
Pressure: 6.4–80 MPa

Fuses:
F4AL250V – Interrupting rating: 63 A

Weight (approx.):
Console: 15 kg
Handpiece: 1.4 kg
Gel pads kit: 0.8 kg
Cart: 18 kg

Dimensions (W × H × D):
Console: 180 × 340 × 450 mm
Handpiece: 156 × 116 × 116 mm
Cart: 913 × 460 × 541 mm

Operating Conditions:
+10°C to +35°C
Relative humidity: 35%–65%
Max altitude: 3000 m
Atmospheric pressure: 700–1060 hPa
