Galaxy® TTET400 Traction Table Package with Knee Bolsters

895 0141
110 Guarantee

Questions? Call (800) 747-3488

An account is needed to review your quote. An account will be created for you after you click the Submit Quote button. Please check your email for login information.

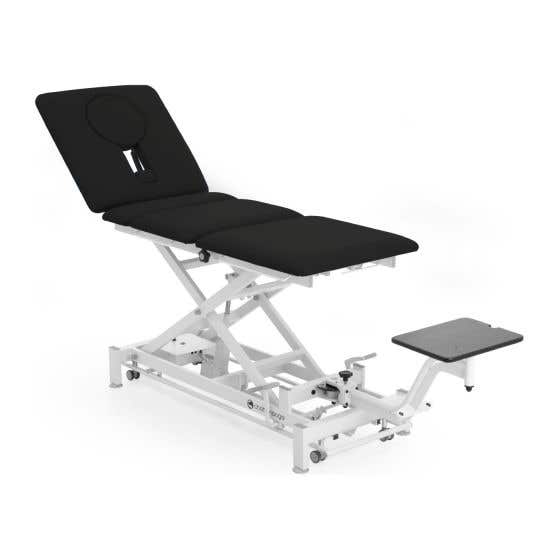

Galaxy® TTET400 Traction Table Package with Knee Bolsters

The Galaxy® TTET400 is a multifunctional 4-section traction table which when used in conjunction with a traction unit, aids in efficient spinal traction treatment. The TTET400’s roller-mounted surface helps prevent friction below the hips and legs, aiding in full traction force during vertebral treatment. The TTET400’s rolling sections can be locked into place, allowing the variable-height traction table to serve as an additional treatment couch.

  • Scissor frame with four feet and four multidirectional, retractable wheels for easy transport
  • Provide maximum patient comfort in prone and supine positions to aid both manual therapy and traction therapy
  • Roller-mounted surface helps prevent friction below the hips and legs
  • Repositionable head/back section elevated to 85°
  • Gas spring assists on friction-free moveable sections allows for easy positioning
  • HalloTronic™+ System enables electric high/low height adjustment from 22 to 40 cm with capacity up to 500 lbs
  • Optional Axillia post package for added stability for your patient. Must be added at the time of your order. Includes: 2 Axilla posts, yoke installed on upper frame, docking elements installed on traction arm.

Traction Package Includes:

  • TTET400 Traction Table
  • TX™ Traction Unit
  • QuickWrap™ DTS Belt
  • Saunders® Cervical Unit Traction Device
  • Knee Bolsters

Technical Specifications:

  • Mains Power: 120 V ~ 50/60 Hz
  • Current: Max 2A with 120V
  • Dimensions:
    • Total: 86.6” L x 33.5” W
    • Head Section: 28”
    • Middle Section: 8”
    • Leg Section: 47”
    • Width: 25”
  • Adjustments:
    • Angle Inclination: Head Section -30° to +80°
    • Displacement: Leg Section 4”
    • Height: 22” - 40”
  • Dynamic Lifting Capacity: 500 lbs.
  • Maximum Workload: 605 lbs.
  • Patient Weight: 286 lbs.
  • Electrical Safety Class: Class I, Type B
  • Safety Tests: CE, Class I Rule 12
  • Table Weight: 274 lbs.


*Image is shown with the optional Axilla Post Package
