Galaxy® TTET400 Traction Table Package with Stool

Item
895 0140
110 Guarantee

Questions? Call (800) 747-3488

.
An account is needed to review your quote. An account will be created for you after you click the Submit Quote button. Please check your email for login information.

McaFee

Galaxy® TTET400 Traction Table Package with Stool

The Galaxy® TTET400 is a multifunctional 4-section traction table which when used in conjunction with a traction unit, aids in efficient spinal traction treatment. The TTET400’s roller-mounted surface helps prevent friction below the hips and legs, aiding in full traction force during vertebral treatment. The TTET400’s rolling sections can be locked into place, allowing the variable-height traction table to serve as an additional treatment couch.

  • Scissor frame with four feet and four multidirectional, retractable wheels for easy transport
  • Provide maximum patient comfort in prone and supine positions to aid both manual therapy and traction therapy
  • Roller-mounted surface helps prevent friction below the hips and legs
  • Repositionable head/back section elevated to 85°
  • Gas spring assists on friction-free moveable sections allows for easy positioning
  • HalloTronic™+ System enables electric high/low height adjustment from 22 to 40 cm with capacity up to 500 lbs
  • Optional Axillia post package for added stability for your patient. Must be added at the time of your order. Includes: 2 Axilla posts, yoke installed on upper frame, docking elements installed on traction arm.

Traction Package Includes:

  • TTET400 Traction Table
  • TX™ Traction Unit
  • QuickWrap™ DTS Belt
  • Saunders® Cervical Unit Traction Device
  • TXS-1 Flexion Stool

Technical Specifications:

  • Mains Power: 120 V ~ 50/60 Hz
  • Current: Max 2A with 120V
  • Dimensions:
    • Total: 86.6” L x 33.5” W
    • Head Section: 28”
    • Middle Section: 8”
    • Leg Section: 47”
    • Width: 25”
  • Adjustments:
    • Angle Inclination: Head Section -30° to +80°
    • Displacement: Leg Section 4”
    • Height: 22” - 40”
  • Dynamic Lifting Capacity: 500 lbs.
  • Maximum Workload: 605 lbs.
  • Patient Weight: 286 lbs.
  • Electrical Safety Class: Class I, Type B
  • Safety Tests: CE, Class I Rule 12
  • Table Weight: 274 lbs.

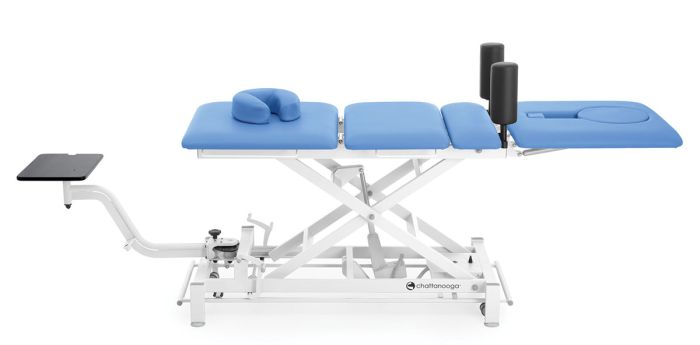

*Image is shown with the optional Axilla Post Package
