Optiflex-K1™ Knee CPM Unit with Standard Pendant

Item
904 0023
110 Guarantee
$2,684.92

Questions? Call (800) 747-3488

.
An account is needed to review your quote. An account will be created for you after you click the Submit Quote button. Please check your email for login information.

McaFee

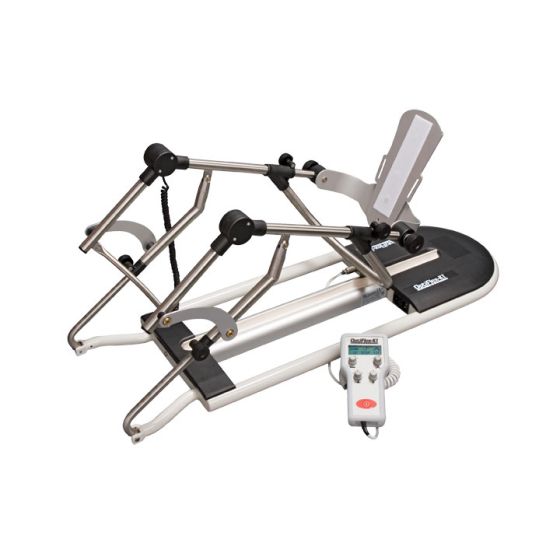

Optiflex-K1™ Knee CPM Unit with Standard Pendant

Continuous Passive Motion is a postoperative procedure designed to aid in the recovery after joint surgery. After extensive joint surgery, if a patient fails to move their joint, the tissue around the joint will become stiff and scar tissue will form, resulting in a joint with limited range of motion, which often takes months of physical therapy to recover. OptiFlex-K1 Knee CPM has interchangeable hand controls for maximum versatility.

Features and Benefits

  • Weighs just 23 lbs (10.4 kg), making it the lightest knee CPM on the market
  • Only 38 inches (97 cm) long
  • Wide low-profile, closed-base frame for stability
  • Faster motor speed
  • Single screw drive
  • Reversible footplate for shorter legs
  • ROM -10 to 120
  • On-board power supply
  • Patient lockout feature
  • Accommodates patients 4 ft to 6.6 ft (1.2 m - 2 m)
  • Two-year warranty

Technical Specifications

  • Knee Flexion: 120°
  • Knee Extension: -10°
  • Speed: 25° - 180°/minute
  • Pauses: 0 - 59 seconds
  • Force Reversal: 45 Kp of force* (built in)
  • Patient Height: 4 - 6.5 ft (1.2 - 2 m)
  • Calf Length Range: 10" - 22" (25.4 - 55.9 cm)
  • Thigh Length Range: 12" - 19" (30.4 - 48.2 cm)
  • Mains Power: 100V-240V, AC 50-60Hz
  • Unit Weight: 23 lb (10.4 kg)
  • Shipping Weight: 54 lb (24.5 kg)
  • Dimensions: 38" x 14" x 9" (97 cm x 36 cm x 23 cm)
  • Electrical Safety Class: Class 1, Type B
  • Safety Tests: IEC 60601, 1:1988 +A1:1991, +A2:1995, CAN/CSA C22.2 NO 601.1 M90, ANSI/UL 60601-1, IEC 60601-1-2, IEC 60601-1-4, ISO 14971, ISO 10993-1

Hand Controller Functions

Function

Classic Hand Control

Standard Hand Control

Comfort Hand Control

Key Lock Function

Yes

Yes

Yes

Pauses

Yes

Yes

Yes

Speed

Yes

Yes

Yes

Timer

No

Yes

Yes

Reverse on Load

No

Yes

Yes

Warm up Protocol

No

Yes

Yes

Default Setting

No

Yes

Yes

Transport Setting

No

Yes

Yes

Chip Card Selectable

No

Yes

Yes

EROM Repeat

No

No

Yes

Stretch Protocols

No

No

Yes

Workout Protocol

No

No

Yes

Comfort Protocol

No

No

Yes

Therapy Documentation

No

No

Yes

EMS Control

No

No

Yes



** Optiflex-K1™ Knee CPM Unit with Classic Pendant available here.
** Optiflex-K1™ Knee CPM Unit with Comfort Pendant available here.
