Galaxy® TTET400 Traction Table Only

Galaxy® TTET400 Traction Table Only

The Galaxy® TTET400 is a multifunctional 4-section traction table which when used in conjunction with a traction unit, aids in efficient spinal traction treatment. The TTET400’s roller-mounted surface helps prevent friction below the hips and legs, aiding in full traction force during vertebral treatment. The TTET400’s rolling sections can be locked into place, allowing the variable-height traction table to serve as an additional treatment couch.

• Scissor frame with four feet and four multidirectional, retractable wheels for easy transport
• Provide maximum patient comfort in prone and supine positions to aid both manual therapy and traction therapy
• Roller-mounted surface helps prevent friction below the hips and legs
• Repositionable head/back section elevated to 85°
• Gas spring assists on friction-free moveable sections allows for easy positioning
• HalloTronic™+ System enables electric high/low height adjustment from 22 to 40 cm with capacity up to 500 lbs
• Optional Axillia post package for added stability for your patient. Must be added at the time of your order. Includes: 2 Axilla posts, yoke installed on upper frame, docking elements installed on traction arm.

Technical Specifications:

• Mains Power: 120 V ~ 50/60 Hz
• Current: Max 2A with 120V
• Dimensions:
• Total: 86.6” L x 33.5” W
• Head Section: 28”
• Middle Section: 8”
• Leg Section: 47”
• Width: 25”
• Adjustments:
  • Angle Inclination: Head Section -30° to +80°
  • Displacement: Leg Section 4”
  • Height: 22” - 40”
• Dynamic Lifting Capacity: 500 lbs.
• Maximum Workload: 605 lbs.
• Patient Weight: 286 lbs.
• Electrical Safety Class: Class I, Type B
• Safety Tests: CE, Class I Rule 12
• Table Weight: 274 lbs.

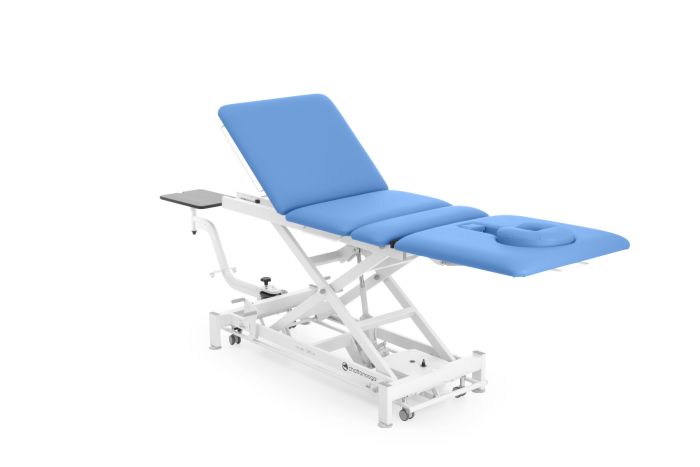

*Image is shown with the optional Axilla Post Package
