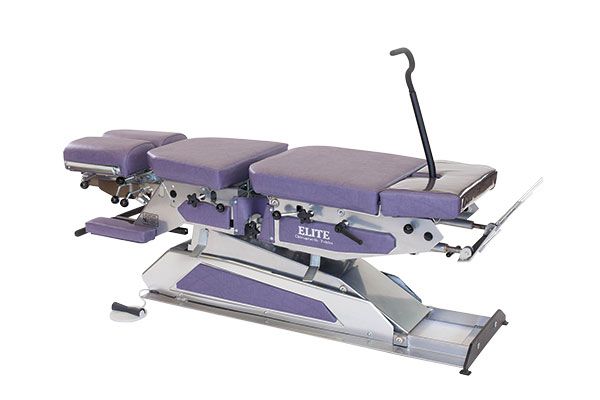

Elite High Low Table with Manual Flexion and 1 Drop

ELITE High Low Manual Flexion Table with Cervical Drop

Featuring motorized high low operation, manual flexion, option motorized distraction and your choice of drops. Ideal for patients that may experience difficulty accessing a table in the horizontal position. All Elite Tables have the following design features for clinician comfort and patient safety: Elite Standard Features:

• Variable cushion position
• Easy access to adjustment controls
• Multi-directional headpiece, tilt, elevation and spread
• Cervical headpiece can be raised 6” above cushions
• Cervical drop (forward motion oriented or straight down motion)
• Easy drop foot cocking pedals on both sides of table
• Elevating Thoracic and Pelvic Lumbar sections each tilt upward to 15° (not available when ordering the electric distraction feature)
• Electric tilt motor is powerful, quiet and smooth rated to 230 kg. (500lbs)
• Knee break adjusts up to 20°, down 10° with ankle rest extension
• Ankle rest extension
• Low maintenance, dependable function
• Non-exposed mechanism
• High density foam cushions
• 21” wide table surface
• Sturdy welded steel construction
• Table Base color black or white

High Low Manual Flexion Specifications:

• Smooth range of lateral flexion (20°)
• Deep flexion 22-25°
• Able to perform figure 8 ROM
• Pelvic cushion will drop in either a flexed/neutral/extended position
• Table can be locked in a flexed position
• Removable flexion control handle offers 3 different height adjustments and can be removed when not in use
• Height: 24"
• Length: 75" - 81"
• Width: 21"
• Weight capacity: 350 lbs
• Limited 2 year warranty

Optional Features:

• Drops - Pelvic/Lumbar, Upper and/or Lower Thoracic
• Dual Footswitch - High Low control
• Abdominal breakaway
• Abdominal drop in breakaway (hand cocked drop)
• Dual tension on all drops (upper, lower thoracic and pelvic) except when breakaway is purchased
• 24" Wide table Surface
• Protective cover for knee break and foot extension
• Leather upholstery
• Electric distraction - 6" footswitch controlled
• Cervical toggle drop
• Dual drop cervical
• Dual footswitch
• Cervical flexion
• Cervical and lateral flexion
• Electric flexion tension

Additional Models:

• HI-LO/Flex-2: Cervical and Pelvic Drops
• HI-LO/Flex-3: Cervical, Thoracic and Pelvic Drops
• HI-LO/Flex-4: All Drops
