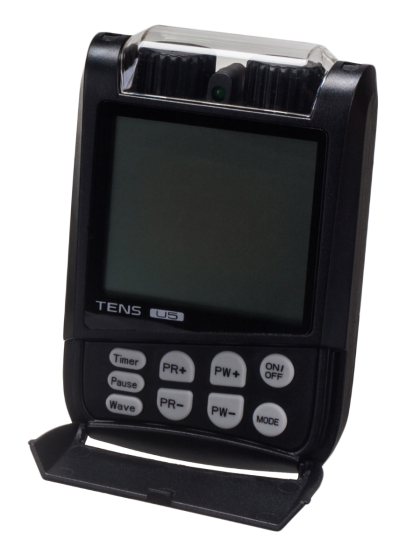

Ultima 5 TENS Unit with Timer - Ultima Five Digital TENS Device

Item
670 0033
In Stock. Will ship in 24-48 hours
110 Guarantee
$31.99
tens,tens, tens,

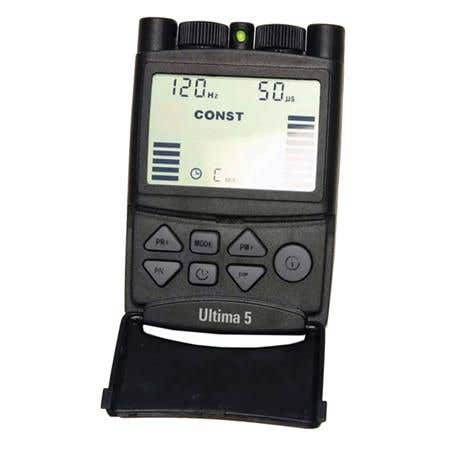

Ultima 5 Digital TENS Unit with Timer


Features:

  • Electrodes: 2" x 2", 4/pkg
  • Channel: Dual
  • Output: Maximum 150 mA (peak value) across 500 Ohm load
  • Pulse Width: 50 - 250 µS (adjustable)
  • Pulse Rate: 1 - 150 Hz (adjustable)
  • Wave Form: Symmetrical Bi-phasic rectangular & Mono-phasic rectangular
  • Mode: Constant, Burst 1, Burst 2, Module 1, and Module 2
  • Burst 1 Mode: Two train per second, 250 ms on 250 ms off; 25 pulses within 1 train, pulse width = 200 µs
  • Burst 2 Mode: Two train per second, 250 ms on 250 ms off; Pulse width and pulse rate are selectable
  • Module 1 Mode: Pulse width modulated from 100 - 250 µs within 6 seconds and then back to 100 µs in the next 6 seconds. Pulse rate is selectable
  • Module 2 Mode: Pulse rate and pulse width modulation; frequency increases from 50 Hz to 100 Hz while pulse width decreases from 200 - 60 µs within 5 seconds
  • Timer: 15, 30, 45, 60 minutes, continuous
  • Display: 52.5 mm x 35.8 mm LCD
  • Power Source: 2 AA batteries

Includes:

  • One pack of 4 electrodes
  • User Manual
  • Carrying case

*This item must be ordered by a licensed healthcare professional.*
