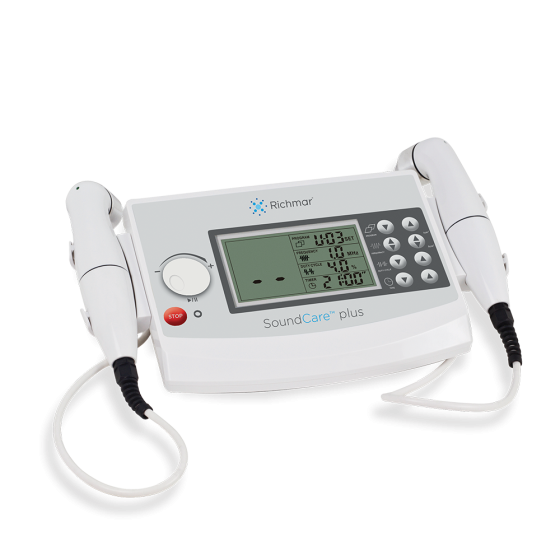

SoundCare™ Plus Ultrasound

# 661 0064
Reviews

Rate this product


$799.99

Qty
-
+








SoundCare™ Plus

The SoundCare™ Plus is the newest addition to the Current Solutions™ line of innovative products. The SoundCare Plus™ is a Professional Ultrasound device, designed by Clinicians. This professional device is unique…. it comes standard with 2 sound heads, 1 cm and 5 cm, that are both plugged into the device at the same time. The user can switch between wands with a single button push. The SoundCare™ Plus has 20 presets and operates in 1MHz and 3 MHz frequencies.


Specs & Features:

Acoustic Frequency: 1MHz ± 10%, 3MHz ± 10%
Output Power: 0.5W - 10.0W ± 20%, when duty factor = 80% for 5cm2 0.5W - 10.0W ± 20%, when duty factor = 80% for 5cm2 0.5W - 10.0W ± 20%, when duty factor = 80% for 5cm2 0.5W - 10.0W ± 20%, when duty factor = 80% for 5cm2
Pluse repetition rate: 100Hz ± 10%
Duty factor : 10% - 100%, Stepping 10%
Timer: Max 30 minutes
Effective radiating area (AER): 5.0 cm2 ± 20%;1.0 cm2 ± 20%
Actual intensity: 3.0W/cm2 ± 20%(1.0 MHz)3.0W/cm2 ± 20%(3.0 MHz)
RBN (Max): 5.00
Beam type: Collimated
Material of Applicator: Aluminium
Waterproof Grade: IPX7 Only for treatment head
Warranty: 2 Year Warranty, Extended Warranty Available

Program Frequency Duty Cycle Treatment Time Suggested Intensity
U-01 1MHz 80% 10 minutes 1.0W/cm2
U-02 1MHz 50% 10 minutes 1.0W/cm2
U-03 1MHz 50% 20 minutes 1.5W/cm2
U-04
1MHz
50%
15 minutes
1.0W/cm2
1.5W/cm2
2.0W/cm2
U-05 3MHz 80% 15 minutes 1.0W/cm2
U-06 1MHz 30% 15 minutes 1.5W/cm2
U-07 1MHz 80% 15 minutes 1.0W/cm2
U-08 1MHz 80% 8 minutes 1.5W/cm2
U-09 1MHz 50% 12 minute 1.5W/cm2
U-10 3MHz 80% 10 minutes 1.5W/cm2

Documents Available

SoundCare Plus Manual
