    E-Stim II® Dual Channel Stimulator with Milliamp & Microamp Current

    Item# 176 0161
    110% Price Match Guarantee

    $100.99

    SELECT QUANTITY:
    -
    +

    Questions? Call (800) 747-3488

    Description

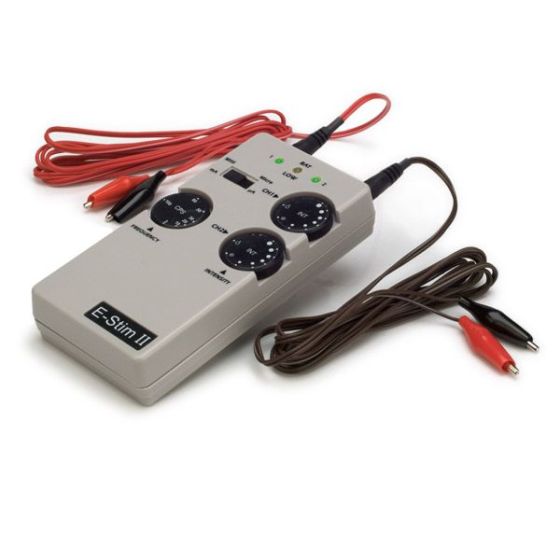

    E-Stim II®

    Dual Channel Stimulator with Milli and Micro current settings. Each channel also includes its own green LED light which displays power on and frequency. Controls are simple and easy to use with 2 control knobs that control the output intensity of each channel separately, 1 knob to control the frequency of the output for both channels, and one selectable switch for Milli-amps (normal current) or Micro-amps (microcurrent). Device is small enough to be carried in most pockets and includes a belt clip.

    Specifications:

    E-Stim II®

    Dual Channel

    Size of Unit

    5” x 2.5” x 1” (15.2 x 6 x 2.4 cm)

    Weight of the Unit

    110g

    Power Source

    9V Battery

    Pulse Shape

    Biphasic Square Wave with Negative Spike

    Pulse Rate (adjustable)

    2 Hz ~ 100 Hz (±20%)

    Output Current (adjustable) at Milli on 500? Load

    0-40 mA (±20%)r.m. s

    Output Current (adjustable) at Micro on 500? Load

    0-2 mA (±20%)r.m. s

    Pulse Width

    260 µ sec (±20%)

    Indicator Lamp

    Green lamp(s) to show power on and pulse rate of channel 1 and 2 separately

    Yellow low battery lamp illuminates when battery power drops to 5.1 V

    Operating Temperature

    50°F to 104°F (10°C to 40°C)

    Output Jack

    3.5 mm Diameter Jack



    Components:

    • (1) E-Stim II™ Device
    • (2) Alligator Type Connecting Wires
    • (1) 9V Battery
    • Instruction Manual
    • Hard Case
