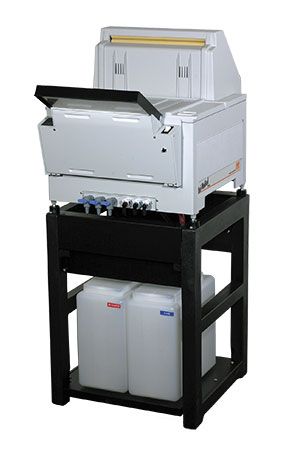

AFP Mini-Med™ 90 Film Processor with Stand

AFP Mini-Med™ 90 Film Processor with Stand

Fast, Versatile... Loaded with Features

The Mini-Med 90 is a 90–second workhorse that pays for itself with smooth, steady efficiency…in practically no time at all. Built and priced to make years of film developing cost effective, the Mini-Med is the perfect choice for hospitals, private practices, clinics and mobile installations. The Mini-Med accepts all standard x-ray film sizes…from 4" x 4" (10 x 10cm) to as large as 14" x 36" (36 x 92cm)…and the Mini-Med 90 can process 90 14" x 17" (36 x 43cm) films per hour.

Built-in quality control indicators

A visual ready indicator conveniently alerts operator after a minimal warm up period. After the last film is processed, the machine returns to an energy and water conserving standby mode. While in standby mode, a special ‘jog’ cycle is employed to guarantee consistent quality throughout the processing day. Separate indicator lights notify operator that solutions are kept at optimal levels and temperatures.

Automatic Chemical Replenisher

An electronic sensing system replenishes solutions automatically, keeping all chemicals at peak operating efficiency.

No Plumbing Necessary

An optional ‘‘no plumbing’’ kit allows the unit to function on self-contained water, making the Mini-Med ideal for mobile installations, and where regulations restrict effluent disposal or no water or drains exist.

Automatic Wash Water Control

The Mini-Med minimizes the consumption of water by eliminating flow during standby mode. Approximately 2/3 liter of fresh water is added during each jog cycle to eliminate potential algae problems.

Infrared Dryer

Energy efficient I.R. heat lamps dry each film quickly and quietly. A unique pivot-back dryer rack enables easy access to wash section and for service and cleaning.

Space Saving Size

Our unique Uni-Body design requires only a minimum of precious darkroom space, measuring only 33" x 22" x 24" (83.8 x 55.9 x 61cm) overall.* Processed film exits from the front, allowing the unit to easily fit in corners or flush against walls.

Reliable Efficiency

The Mini-Med drive system is the result of years of technological advances. Ultra-reliable and incredibly rugged, our new worm drive greatly reduces the load on the system and extends motor life.

Easy to Use, Easy to Install

The Mini-Med runs on standard 110V (220V optional) electrical current and requires only a cold water line connection. It can be installed either inside or outside of the darkroom. The optional ‘no plumbing’ conversion kit can be used in conjunction with replenisher tanks to eliminate the need for running water and exterior drainage, ideal for mobile medical facilities. Fixer drainage hose fittings are compatible with most standard silver recovery units. The Mini-Med also includes replenisher storage tanks and connecting plumbing hoses.

Easy to maintain, backed by the industry’s most comprehensive warranty

The simplicity of the Mini-Med carries right through to the easy-to-understand operating manual that accompanies every unit. Should warranty repair be necessary, the Mini-Med is backed by a comprehensive two-year parts warranty. Just contact a factory trained dealer service representative for prompt responsive service.
