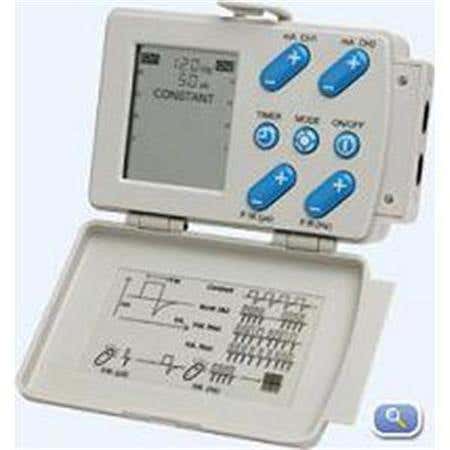

Impulse TENS D5 Digital TENS Unit

The inside flip top cover includes an instruction diagram to guide the user through five modes of operation; constant, width modulation, rate modulation and two different types of burst. A timer allows the patient to use the device for a specified period of time and a low battery indicator light illuminates when the AA batteries need to be changed. If the device is not correctly attached to the patient, the amplitude does not increase.

Size: 4.2" x 2.9" x 1.4"
Power Source: 2 AA batteries
Channels: Dual
Waveform: Symmetrical, biphasic square wave
Pulse Rate (Hz): 1 120 Hz (Hertz or pps) adj.
Pulse Width (µS): 25 250 miscroseconds (µS) adjustable
Output: Constant current
Constant: Conitnuous stimulation. Pulse rate/Pulse Width are adjustable
Pulse Rate Modulation: Pulse Rate modulates from 100Hz dow to 20Hz over a 15 second cycle (7.5 seconds down, 7.5 seconds up). Pulse Width is adjustable.
Pulse Width Modulation: Pulse width modulates from 125-250µS and back down over a 5 second cycle (2.5 seconds down, 2.5 seconds up). Pulse Rate is adjustable.
Burst I: One second ON. One second OFF. Pulse Rate and Pulse Width are adjustable.
Burst II: Seven Pulses per burst, 2 bursts per second. Pulse Width is adjustable
Output: Constant current
Intensity: Continuously adjustable from 0-100 mA peak to peak
Output Voltage: Continuously adjustable from 0-50 V peak to peak
