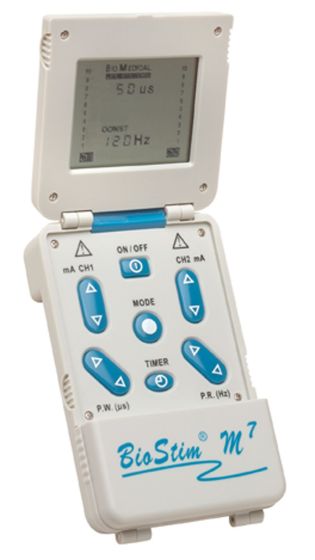

BioStim M7 TENS Unit
Size: 3.25” x 2.25” x 1 5/8” (82 mm x 70mm x 45mm)
Weight: 8 oz (266 grams)
Waveform: Asymmetrical rectangular biphasic (TENS)
Pulse Rate (adj.): 1- 200 Hz
Pulse Width (adj.): 10 - 250 µs
Rate Modulation:50% decrease/increase of set value over a 5 second cycle
Width Modulation: 50% decrease/increase of set value over a 5 second cycle
Rate/Width Modulation: 50% decrease in set value over a five second period. As rate increases, width decreases.
SD1: Increase of set pulse width 40%, decrease of set pulse rate 45% and decrease of amplitude 10% over a 3 second period. Values return to original settings over the next 3 seconds.
SD2: Increase of set pulse width 60%, decrease of set pulse rate 90% and decrease of amplitude 13% over a 6 second period. Values return to original settings over the next 6 seconds.
Cycled Burst: 2.5 seconds on. 2.5 seconds off.
Adjustable Rate and Width.
Output Voltage: 49 Volts peak to peak
Intensity (adj.): 0-98 mA
Power Supply 4 AA Batteries
Data was recorded across a 500 ohm resistance load.
**Replacement product for the BioStim LX (670 0004)
